A portable C graphics library for ST7789 displays on STM32

Shapes, anti-aliased text, icons, images and widgets for 240 x 240 RGB565 panels. It talks to the hardware through two functions, uses integer arithmetic only, and every drawing path is tested on a PC.

Get started View on GitHub

C99
MIT license
FMC, SPI or 8-bit
No float, no malloc
Single-header option

Dashboard demo page with a CPU ring gauge, a temperature reading, a line chart and a tab bar — Dashboard

Settings demo page with list rows, switches, a slider, check boxes and buttons — Settings

Text demo page showing five anti-aliased font sizes and a large clock — Anti-aliased text

Icons demo page with 32 colourful icons in a grid — 32 icons

2functions connect it to the hardware

12xfewer bus writes than pixel by pixel

0floating-point operations

69checks run on a PC, plus 16 pixel hashes

Why this library

Driving a parallel ST7789 from an STM32 is easy to start and hard to make fast. Sending the address window for every pixel costs 12 bus writes per pixel, so a full screen takes 691,200 writes. This library sets the window once and streams the pixels, which brings a full-screen fill down to 57,611 writes.

Fast by construction

Every primitive paints runs of pixels with one window and one burst, and clips to the screen first. Nothing draws pixel by pixel.

Two-function port

Implement gfx_port_cmd() and gfx_port_data() for FMC, SPI or an 8-bit bus. The rest of the library never touches a register.

Host-testable

A model of the controller runs on your PC. Tests compare every page of the demo to golden pixel hashes before anything reaches the board.

Anti-aliased text

Six proportional fonts derived from DejaVu Sans, 4 bits per pixel, with UTF-8 input for Latin-1 characters.

Ready-made widgets

Panel, button, switch, slider, ring gauge, chart, list, tab bar and status bar, with a dark and a light theme.

Small footprint

Integer maths only. About 141 KB of font data, which the linker drops for fonts you do not use. No dynamic memory.

How it draws

A rectangle is clipped, the controller window is set once with CASET, RASET and RAMWR, and then every pixel is sent as a single data word. The controller advances through the window by itself.

Window and burst: the set-up cost is paid once per run, not once per pixel.

Bus writes measured on the PC model with make bench. A single pixel costs the same either way; everything larger is about 8 to 12 times cheaper.

Quick start

Add include/ and src/ to your project, or drop in the single header. Then provide the two port functions and draw.

#include "gfx_core.h"
#include "gfx_text.h"
#include "gfx_fonts.h"

/* The only link to the hardware. FMC 16-bit, A0 selects command or data. */
#define LCD_REG (*(volatile uint16_t *)0x60000000u)
#define LCD_RAM (*(volatile uint16_t *)0x60000002u)
void gfx_port_cmd(uint8_t c)   { LCD_REG = c; }
void gfx_port_data(uint16_t d) { LCD_RAM = d; }

void draw(void)
{
    gfx_fill_screen(GFX_HEX(0x10131A));
    gfx_text(10, 10, "Hello, ST7789", &gfx_font_sans_bold_24,
             GFX_WHITE, GFX_HEX(0x10131A));
}

The full walkthrough, including STM32CubeIDE setup and the SPI and 8-bit ports, is in Getting started. The single-header form is described in the API reference.

Demo and self-test pages

The library ships seven demo pages and nine bring-up patterns. The same pages are rendered on the PC model, hashed, and compared with a golden file in CI.

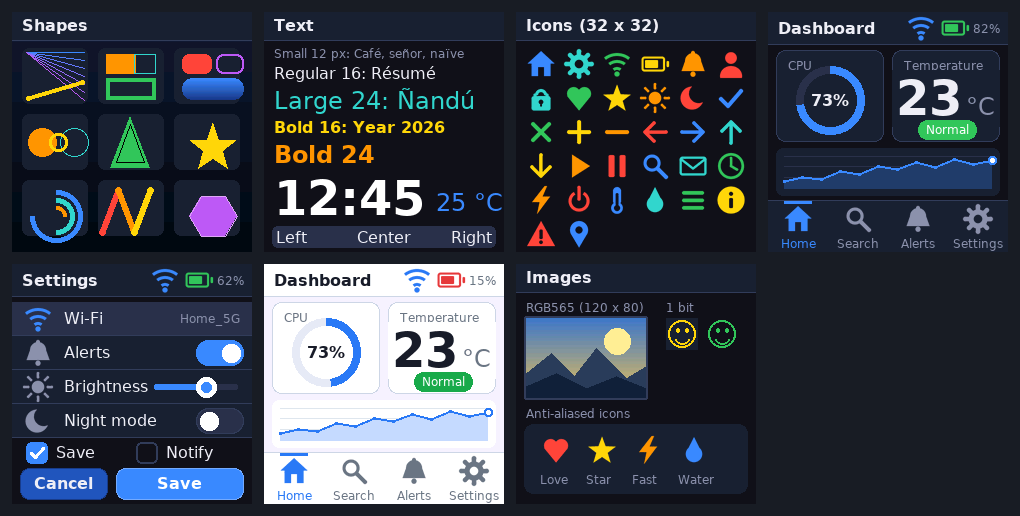

Contact sheet of the seven demo pages: Shapes, Text, Icons, Panel, Settings, Light theme and Images — Demo pages, rendered by the host model: Shapes, Text, Icons, Panel, Settings, Light theme, Images.

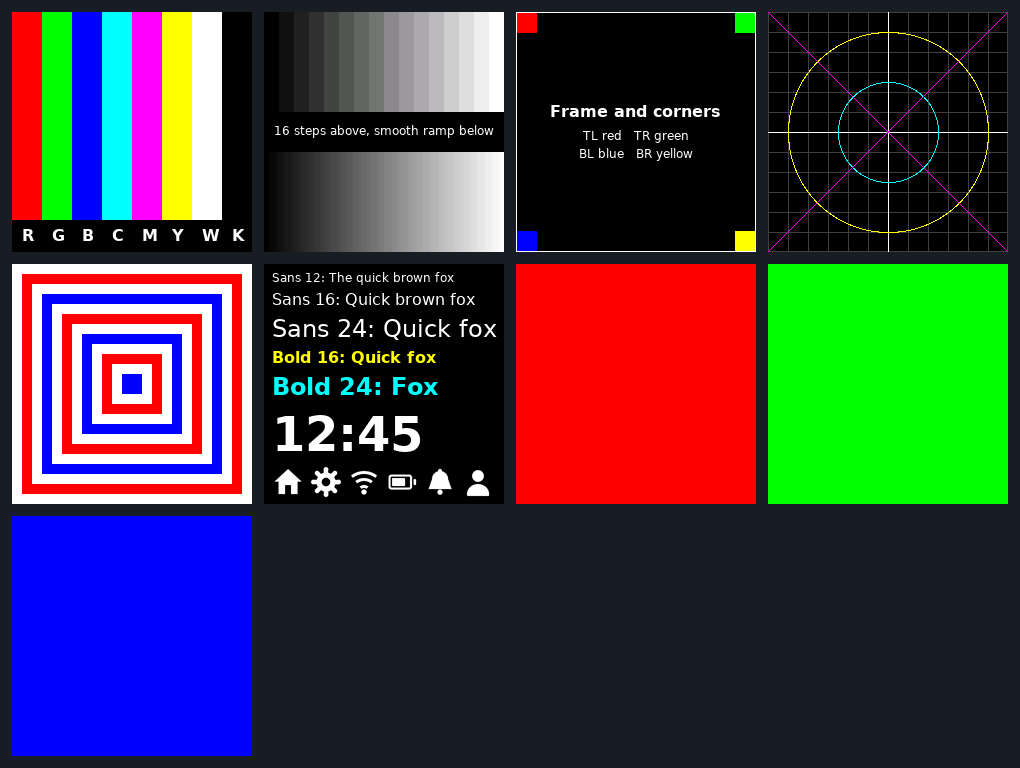

Contact sheet of the nine self-test patterns: colour bars, gray ramp, frame and corners, grid, nested rectangles, text and icons, and solid red, green and blue — Self-test patterns for a real panel. Each one makes a different wiring or configuration fault obvious. See Testing on the board.

Is it the right fit

Good fit: a 240 x 240 ST7789 panel on an STM32 with FMC (or any MCU that can write a command byte and a data word), a UI of panels, text and gauges, and a wish to test drawing code on a PC.
Not a fit: screen rotation, scrolling, hardware read-back and DMA streaming are not provided. See the known limits.

Credits

The library started as practice 7 of the Procesadores y Sistemas Digitales (PSyD) course at the Universidad Complutense de Madrid (UCM), written for the STM32F723E-DISCO board, and was reworked into this standalone project. The fonts are derived from DejaVu Sans; see the third-party notices.
